DC-phoenix enable software TP

Download DC Phoenix software here

Software testpoint service works for device with up to 10.0 Android, EMUI 10!
In some cases must downgrade to android 9.0 before attempting service!
Contact support if not sure!
"Software Testpoint" should never be considered a guaranteed way to put a mobile in TP mode


Step 1
Launch the program

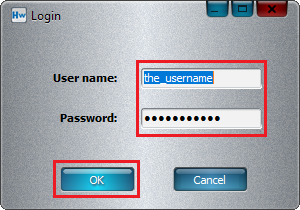

If there is no DC-Unlocker/Rocker/Vygis or Infinity dongle connected to PC, then log in screen will appear. Use your timed license account details to log in

Don't have timed license account? How to get Username/Password check here


Step 2

Open "Update by TP" tab, choose "Enable software testpoint" option


Step 3
Phone may be in following modes:
 a: ADB (recommended to begin with, no need firmware file)
 b: Fastboot (need to select firmware (proceed to step 5))
 c: Update mode (need to select firmware (proceed to step 5))


Step 4

Enable usb debugging
If doing from FASTBOOT or UPDATE mode skip this step

for ADB mode necessary to enable USB debugging


Step 5
Select file
If doing ADB method skip this step

Select firmware file for your mobile, same or higher version Android, preferably same customization
(We don't have stock roms and do not help finding them - files on support area do not suit for this!!!)

If process ends with an error, try putting a check mark on the option below selection. Use it only if process without it failed or firmware is different region or lower version

Press "Do job"


Step 6
Monitor processs

if ADB mode, allow usb RSA finger key if prompted


Wait for message indicating process success, Phone will switch to testpoint mode shortly after (Testpoint mode is completely black screen, phone only shows in ports if installed)

WARNING! If phone does not appear on DC-phoenix in ports window, you need to apply drivers manually! Go to device manager on computer and locate your device, should look like this:

Driver packs below


Drivers

Testpoint drivers 1

Testpoint drivers 2

IMPORTANT: if phone could not enter software testpoint by any method above, then may only try hardware testpoint.
Known locations of testpoints on mobiles find in "Testpoint files" tab


How to disable software testpoint, follow this guide HERE
